Quality Steel Rolling Shutter Strip Roll Forming Making Machine for Sale

• Overview
• Product Description
• Detailed Photos
• Product Parameters
• Installation Instructions
• Company Profile
• Packaging & Shipping

Overview

Basic Info.

Model NO.	LW Shutter door
Tile Type	Colored Steel
Certification	CE, ISO
Condition	New
Customized	Customized
Usage	Door
Transmission Method	Electric
Name	Rolling Shutter Door Roll Forming Machine
Weight	3ton
Loading	Two Sets in One 40hq
Delivery	40 Days
Drive Motor	4kw
Transmission	Gear or Chain
Roller	45# Steel
Shaft	50mm
Blade	Cr12MOV
Control	Delta, Siemens
Accessories	Hydraulic Unwinder, Auto Packing Machine
Transport Package	Plastic Packing & Wooden Case Packing
Specification	3.5X1X1.7
Trademark	LW
Origin	Hebei, China
HS Code	84552210
Production Capacity	200sets/Year

Product Description

The Quality Steel Rolling Shutter Strip Roll Forming Making Machine for sale is a specialized piece of equipment designed for the efficient production of steel roller shutter door strips. These strips are essential components of roller shutter doors, which are widely used in commercial, industrial, and residential settings for security, insulation, and space-saving purposes

1. Precision Strip Forming: The machine is engineered to transform steel coils into precise, uniform shutter strips. It uses a series of rollers to gradually shape the steel into the desired profile, ensuring consistent quality and dimensions.

2. Customizable Profiles: The machine can be tailored to produce shutter strips in various shapes, sizes, and thicknesses, depending on the specific requirements of the roller shutter door design.

3. High-Speed Production: Designed for industrial-scale manufacturing, the machine operates at high speeds, enabling the production of large quantities of shutter strips in a short time frame.

Omega Profile Sizes

Working Process

Uncoiling → Feeding material into machine →Roll forming → Cutting →Products receiving table

Applications of Quality Steel Rolling Shutter Strip Roll Forming Making Machine for sale

1. Roller Shutter Door Manufacturing: Used to produce high-quality steel strips for roller shutter doors in commercial, industrial, and residential settings.

2. Security Production: Ideal for creating durable and precise strips for security door and barriers.

3. Industrial Shutter Systems: Suitable for manufacturing heavy-duty shutters used in warehouses, factories, and storage facilities.

4. Fire-Rated Shutter Doors: Capable of producing strips for fire-resistant roller shutters, commonly used in safety-critical environments.

5. Insulated Shutter Doors: Used to create strips for insulated roller shutters, which are essential for temperature control in buildings.

1. Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.

2. Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.

3. Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.

4. Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.

Thank you for considering our Rolling Shutter Door Roll Forming Machine ! We are committed to providing high-quality products and exceptional service to meet your needs. If you have any questions, require further details, or would like to discuss customization options, please feel free to reach out to us. Our team is always ready to assist you with prompt and professional support.
Contact us today-we're here to help!

Product Description Detailed Photos

Un-powered, Manually control steel coil inner bore shrinkage and stopMax Feeding width: 500mm,coil ID range ф460-520mmCapacity:Max 2 Tons Hydarulic type as option

The feeding guide device at the main entrance of the machine during work,Raw materials enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently

Forming mold: 45# steel, through vacuum quenching heat treatment to HRC60-62 ° The precision machining roller surface with CNC latheShafts material:45# steel,CNC lathes,Heat Treatment,hard Chrome CoatedWith thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)Main motor and 12 reducers combination driving,about 16 Step to formMain Motor 4KW,Frequency speed control

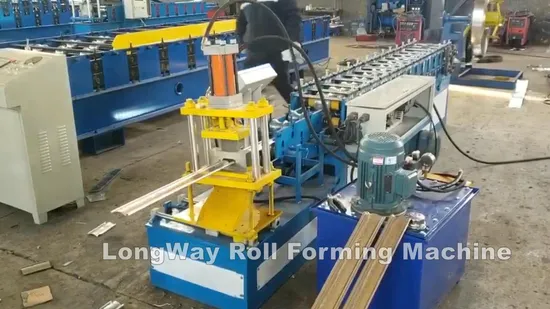

Cutting And Punching DeviceCutter stype:Not stop cutting and punchingThe length of tolerance:±1.0mm(3m)Cutter motor:HydraulicHydraulic power:4 KW

Control The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Auto Packing system Function: Receiving the finished channels.

Product Parameters

Raw Material	Coil Type	GI AL
	Width	As profile design
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		10-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		Casting steel
Forming shaft		50mm solid shaft with heat treatment
Material Of Rollers		45#
Forming stations		16 Rows
Transmission Way		Gear or Chain
Type of cutting		Hydraulic Pillar type and Flying cut
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		4.5m×1.5m×1.2m
Total weight (Approx)		2.6T
