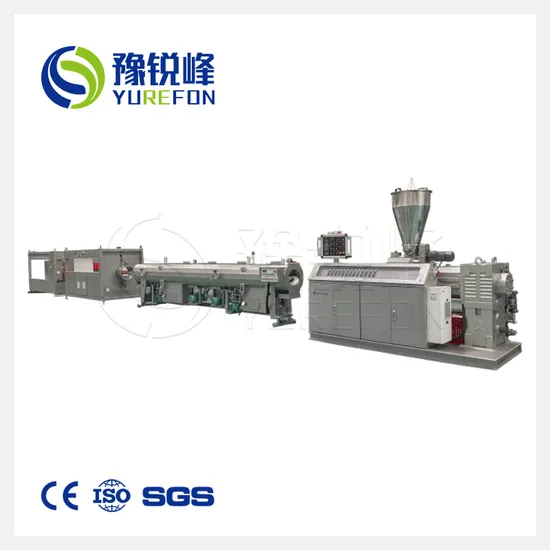

Plastic Twin Screw Electrical Conduit Water Drainage Sewer PVC Pipe Extruder Making Machine

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• Company Profile

Overview

Basic Info.

Screw No.	Double-screw
Automation	Automatic
Computerized	Computerized
Customized	Customized
Condition	New
Name	PVC Pipe Manufacturing Machine
Power Supply	380V 3phase 50Hz (Can Be Customized)
Motor Brand	Siemens
Inverter Brand	ABB
Raw Material	PVC Powder
Color	Customized
Delivery Time	40 Working Days After Receiving The Deposit
Transport Package	PE Film and Wood Packaging
Trademark	YUREFON
Origin	Jiangsu, China
HS Code	84772090
Production Capacity	50 Sets/Year

Product Description

Plastic Twin Screw Electrical Conduit Water Drainage Sewer PVC Pipe Extruder Making Machine

PVC Pipe Application:

1. Water Supply Pipe&Drainage pipe&Sewage Pipe2. Production Flow: Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker

Equipment Features:

♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution; ♦ Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design; ♦ Vertical integrated structured gear box with adopts NSK bearings guarantee stable operation and long uselife; ♦ Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling; ♦ Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface; ♦ U type, R type and Air blow type socket can be provided according to applications; ♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.

Main Technical Parameters:

Machine Pictures:

Extruder:Die HeadVacuum Calibration Cooling tankHaul-off unit

Cutting machine

If you have any questions, please contact us:


Product Description Product Parameters

Model	Pipe diameter	Vacuum Calibration Tank			Spray Cooling Tank		Haul-off unit		Cutter
		Vacuum pump	Water pump	Length(mm)	Water pump	Length(mm)	caterpillal Quantity	Motor	Motor	Cutting type
PVC63*2	φ16mm-φ63mm	3kw*2	3kw*2	5000mm	/	/	2	1.5kw*4	1.1kw*2	Guillotine cutter
PVC-110	Φ40mm-φ110mm	4kw*1	4kw*2	6000mm	/	/	2	3kw	2.2kw*1	Guillotine cutter
PVC-160	Φ50mm-φ110mm	5.5kw*1	4kw*2	6000mm	/	/	3	1.1*3	1.5kw*1	Planetary cutter
PVC-250	Φ75mm-φ250mm	5.5kw*1	5.5kw*2	6000mm	/	/	3	1.1kw*3	2.2kw*1	Planetary cutter
PVC-315	Φ110mm-φ315mm	5.5kw*1	5.5kw*2	6000mm	/	/	4	1.1kw*4	2.2kw*1	Planetary cutter
PVC-400	Φ160mm-φ400mm	5.5kw*2	5.5kw*2	6000mm	5.5kw*1	6000mm	4	1.1kw*4	2.2kw*1	Planetary cutter
PVC-630	Φ315mm-φ630mm	7.5kw*2	7.5kw*2	6000mm	7.5kw*1	6000mm	6	1.1kw*6	3kw*1	Planetary cutter
PVC-800	Φ500mm-φ800mm	11kw*2	7.5kw*2	6000mm	7.5kw*1	6000mm	8	1.1kw*8	3kw*1	Planetary cutter

Parts	No.	Name	Brand
1 Screw and barrel	1	Design	German design
	2	Main materials	38CrMoALA
	3	Screw heating	Silicon oil heating
	4	Barrel heater	Cast aluminum heater
	5	Barrel has vacuum exhausting system
2 Driving parts	1	Main motor	Siemens Brand
	2	Gear box	Top brand in China
3 Electric parts	1	Inverter	ABB brand
	2	Contactor	Schneide brand
	3	Relay	Schneide brand
	4	Breaker	Delixi brand
	5	Temperature meter	RKC brand
	6	Hauling motor	Densen brand
	7	Hauling gear box	Hard surface gear box
	8	Vacuum pump	Yvhuang brand
	9	Water pump	Yvhuang brand
	10	Cutting motor	Siemens brand
	11	PLC	Schneide brand
4 Mechanical parts	We use CNC machines to ensure the precision of our mechanical parts
5 Protection system	We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on.
