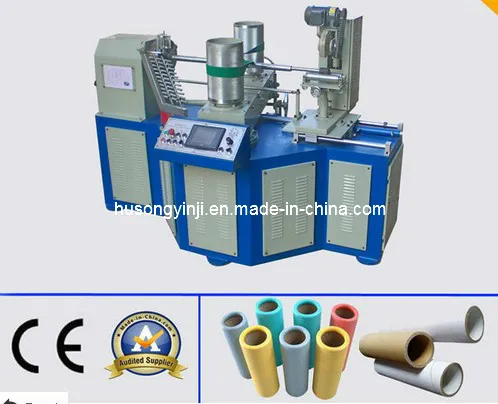

Paper Pipe Making Machine, Paper Core Maker, Paper Tube Machine

Basic Info.

Model NO.	all kinds
Gumming Type	Single Side
Layers of Roll Paper	2 - 8
Certification	CE
Condition	New
Process	Paper Machine
Usage	Packing Paper Machine
Automatic Grade	Automatic
Computerized	Yes
Transport Package	Wooden Case
Specification	CE
Trademark	Husong
Origin	China
HS Code	844250000
Production Capacity	100 Set

Product Description

Paper pipe making machinefor 1 inch, 1.5 inches, 3 inches, max 8 inches.

Equipped with Emerson PLC and Highten touch screen, all the parameter are displayed on the monitor. Pre-set the parameters on the operation panel, it will start work automatically. Equipped with imported frequency inverter for AC motor control, the machine work will be more stable. Equipped with separate electrical control box, which is with input plug terminal, easier to maintain.

Unwinding Section
One unwinding stand is included. The unwinding angle is adjustable on the control panel, and it adopts compact structure for space saving.
Glue Section
One automatic glue-speader is included. It equipped with automatic glue recycle system, stainless steel glue tank for rust avoiding, and both single/double side coating is available.

Forming Section
Equipped with full-lubarication gear box to drive the 2-column former. The forming belt width range is 30-60mm, and it is bearable. The paper enter angle is adjustable. Equipped with imported frequecy inverter motor for the forming running speed control, and it is adjustable.

Cutting Section
Equipped with imported single disc type cutter for the paper core cutter. Equipped with photocell for length precision control, the precision is ± 3mm.
