Extrusion Machine PVC Pipe Making Machine Price

Basic Info.

Model NO.	SJ
Type	Pipe Extruder
Plastic Processed	PVC
Product Type	Pipe Extruder
Feeding Mode	One Feed
Assembly Structure	Separate Type Extruder
Screw	Twin-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Don′t Exhaust
Automation	Automatic
Computerized	Non-Computerized
Application	Plastic Extruder
Model Number	Sjz Series
Company Brand	Wanrooetech
Screw Quantity	2 PCS
Motor Brand	Siemens
Motor Power	22-55kw
Temperature Control	Rkc
PLC Control	Optional
Power Source	380V 50Hz
Capacity	150-500kg/H
Transport Package	Wooden Case
Specification	depends
Trademark	wanrooetech
Origin	Jiangsu
HS Code	84778000
Production Capacity	500 Sets/Year

Product Description

Description
1. It is a high tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines,plastic production line. 2.Our plastic extrusion lines based on Plastic Extruders:Single Screw Extruder,Conical Twin Screw Extruder and Parallel Twin Screw Extruder. 3.Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe,plastic foamed profile,WPC profile and panel,wood plastic composite and so on. 4.Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line. 5.We provide plastic machine which can make Agriculture pipe,machines to produce pellet,laminating machine,wooden window frames machine.Our machine can make 3D printer material. 6.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.

System configuration

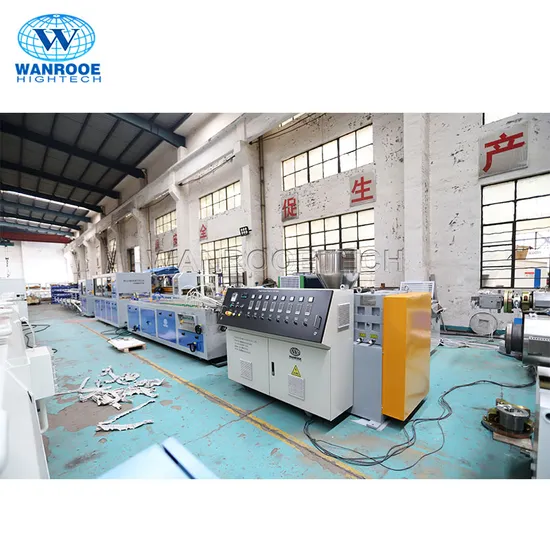

(a) Feeding machine (b) Conical double-screw extruder (c) Mould (d) Vacuum Calibrating tank (e) Hauling off machine (f) Printing machine (g) Pipe cutting machine (h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.Parameters:
Details:

Our Service
1. One year guarantee for whole machine 2. 24 hours technical support 3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account. 4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. 5. We also can provide training service which help operators handle the machine well.



Extrusion Machine PVC Pipe Making Machine Price

Item	PVC50	PVC160	PVC250	PVC315	PVC400
Specification	16-50	63-160	160-250	250-315	200-400
Extruder	SJSZ48/112	SJSZ65/132	SJSZ80/156	SJSZ80/156	SJSZ80/156
Mould	1 suit	1 suit	1 suit	1 suit	1 suit
Vacuum shaped tank	4000mm	6000mm	6000mm	6000mm	6000mm
vacuum pressure(Mpa)	-0.03~0.08	0.03~0.08	-0.03~0.08	0.03~0.08	-0.03~0.08
Max traction force(N)	10000	15000	20000	25000	30000
Traction speed/min/max	10	6	4	3	2
Effection traction length	1000	1500	1500	1500	1800
Compressed air capacity m3/h	0.4	1.0	1.2	1.2	1.5
Water consumption m3/h	5	7	8	8	9
