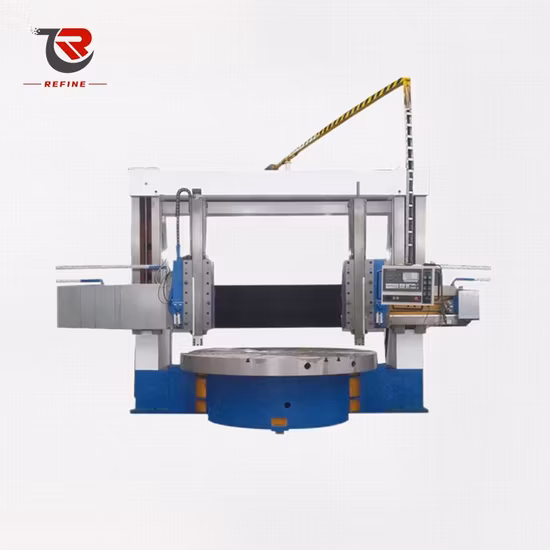

Ck5240 Double Column Automatic Vertical Lathe

Overview

Basic Info.

Model NO.	CK5240
Processing Accessory	Metal
Guide Rail	Hydraulic
Tool Holder	4
Power Source	Hydraulic Pressure
Controlling Mode	Gear
Automatic Grade	Manual
Setting Mode	Table
Precision	Precision
Certification	CE, ISO 9001
Condition	New
Transport Type	by Sea
Main Word	CNC Turning Lathe
Control	CNC System
Max Turning Diameter	5000mm
Worktable Size	4500mm
Column	Two
Payment Term	T/T
Delivery Time	45-100 Working Days After Receiving Downpayment
Document	English Operation Manual
Appication	Flange/Valve /Metail Parts
Transport Package	Plywood Box
Specification	According to which model
Trademark	No
Origin	Dalian, China
HS Code	8458990000
Production Capacity	5000 PCS/Year

Packaging & Delivery

Package Size 360.00cm * 220.00cm * 230.00cm Package Gross Weight 10000.000kg

Product Description

PRODUCTION DESCRIPTION

This machine is suitable for high speed steel and alloy cutting tools, hardware for ferrous metal, nonferrous metal and some non-metallic parts inside and outside the cylinder, end, grooving of rough finish machining, etc.
The machine tool is of single column structure. It is composed of crossbeam, workbench, crossbeam lifting mechanism, vertical tool holder, AC servo drive system, hydraulic device and electric control cabinet. The machine tool is equipped with external protective cover.

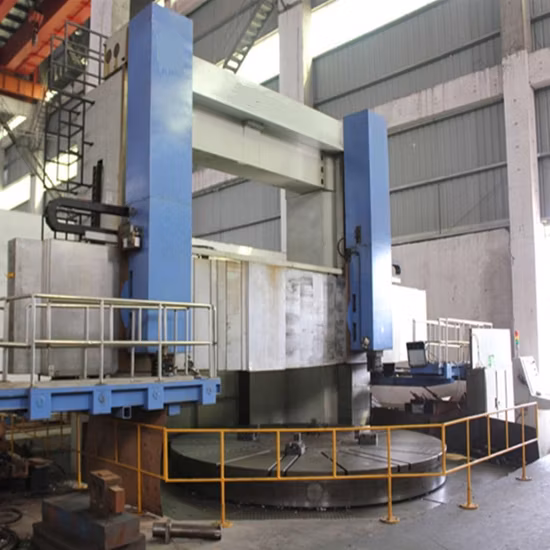

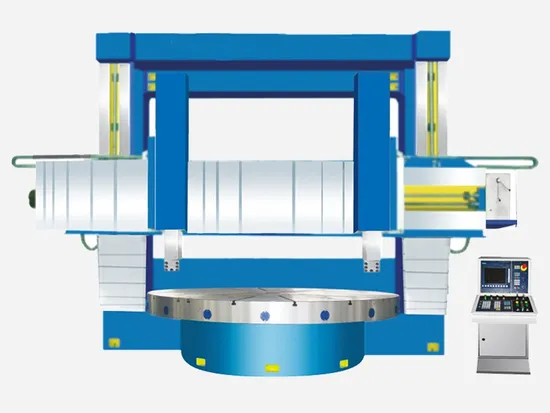

MACHINE PICTURES

PARAMETERS

Name	Unit	CK5225	CK5240	CK5250	CK5263	CK5280
Max cutting diameter of workpiece	mm	2500	4000	5000	6300	8000
Workbench diameter	mm	2250	3200	4500	5700	6300/7200
Max height of workpiece	mm	1600/2000	2000/2500/3150	2000/2500/3150	2500/3150/4000	3500/4000/5500
Max weight of workpiece	t	15	32	50	80/125	60/80/150
Workbench speed range	r/min	2~63	0.5~45	0.5~40	0.5~40	0.32~32
Workbench speed series	step	two gears no step	two gears no step	two gears no step	two gears no step	two gears no step
Main motor power	kw	DC55	DC55	DC75	DC90	DC132
Max workbench torque	kn.m	63	63	100	150	200

MACHINE FEATURES

WORKBENCH STRUCTURE:Table par is consisting of the workbench, table base, spindle components and transmission components.Workbench and workbench base respectively for the overall casting structure, the use of high strength and low stress cast iron, grade HT250 aging treatment has sufficient rigidity, strength and stability. Workbench bearings using high precision NN30 series double row short cylindrical roller bearings, by adjusting the radial clearance to ensure high precision rotary table, and a high working life. Workbench guide rail for constant current hydrostatic guide, to ensure long-term stable work bench.HYDRAULIC STATIONtable static pressure system, the main transmission system, cross-beam clamping system, vertical turret ram hydraulic balance system. Static pressure system table by the oil pump, the static pressure oil is allocated to each oil pool, table height by adjusting the reach of 0.06-0.15mm. Hydraulic device pressure protection, such as the use of pressure will automatically shut down.BEAM STRUCTURE:By the beams, horizontal feed transmission structure, clamping mechanism and hydraulic device and other components.Beam using high strength and low stress cast iron, aging treatment, structural stability is not deformed, the guide after IF quenching, with sufficient rigidity, strength, to ensure the accuracy of the machine. The top of the guide rail is equipped with a weight-reducing and unloading device, which reduces the resistance of the tool holder during movement. The contact surface of the beam and the column guide rail is glued with PTFE wear-resistant guide rail soft belt, which has a small coefficient of friction and greatly prolongs the service life of the machine tool. Beam placed in front of the column, so that the vertical beam in the vertical columnELECTRIC SYSTEMAll machine control components such as contactors are installed in the power distribution cabinet. All the operating components are centrally mounted on the hanging button station. Machine electrical system and mechanical action set many chains, to ensure the machine control and mechanical movement of the reliability, safety, in the event of failure, just press the emergency button, the whole equipment power.GANTRYGantry is consisting of the left and right columns and connecting beams. In the upper part of the gantry there are left and right lifting boxes, driven by the AC motor, through the worm gear and double screw to make the beam along the left and right column rails to move up and down. Machine tools left and right columns, beams and other large-scale use of high strength, low stress cast iron material, hardness HB170-190, the machine has greater strength and higher stiffness, after aging treatment to eliminate stress and ensure the accuracy of the machine.
