Ck5112 Single Coulmn CNC Vertical Lathe

Overview

Basic Info.

Model NO.	CK5112/CK5116/CK5120/CK5123/CK5126
Processing Accessory	Metal
Guide Rail	Hydraulic
Tool Holder	4
Power Source	Hydraulic Pressure
Controlling Mode	CNC
Automatic Grade	Manual
Setting Mode	Table
Precision	Precision
Certification	CE, ISO 9001
Condition	New
Payment Term	T/T
Delivery Term	Foc/C&F/CIF
Max Turning Diameter	1200mm
Document	English Operation Manual
Control Type	CNC System
CNC System	Fanuc/Siemens
Delivery Time	45-75 Working Days After Receiving Downpayment
Application	Flange/Valve /Metail Parts
Transport Package	Plywood Box
Specification	2360*2277*3403mm
Trademark	No
Origin	Dalian, China
HS Code	8458990000
Production Capacity	5000 PCS/Year

Packaging & Delivery

Package Size 236.00cm * 230.00cm * 340.00cm Package Gross Weight 9500.000kg

Product Description

PRODUCTION DESCRIPTION

1). It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .

2). It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc 3). Spindle bearings use domestic famous-brand company products.4). Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.5). Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.6). Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.7). Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.Based on excellent processing equipments, strong technical force, perfect inspection way, and inpectable management system. Baili Machine has passed National ISO9001:2008 Quality Management System Certification.

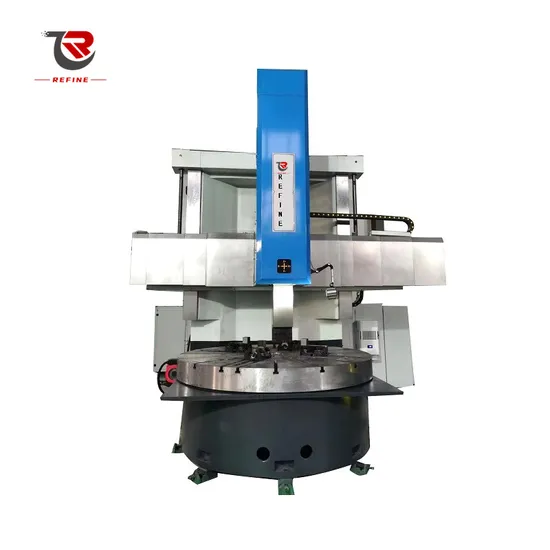

MACHINE PICTURES

MACHINE FEATURES

Tool Holder:

The default tool post is a four-position electric tool post, which is selected from Yantai Universal Brand and belongs to the best tool post supplier in China. Depending on the size of the machine tool, we also provide 6-position and 8-position tool post.

Worktable:

The worktable is made of high-hardness materials. Under the condition of ensuring large bearing capacity, the guide surface of the workbench base has been scraped, which makes the machining accuracy higher, which has a significant advantage over the same industry.

CNC Controller:

Mitsubishi/Siemens/Fanuc numerical control system and servo drive, system reliability, simple operation.

Chip Conveyor:

If machine has full cover, the Chip Conveyor should be choose.It is suitable for steel industry scrap (material) fast delivery. With special structure can be better suitable for the delivery of chips under bad working conditions, such as steel pipe industry wire machine produced by the long strip of large roll chip.

PARAMETERS

ITEMS	UNIT	CK5112	CK5116	CK5120	CK5123	CK5126
Max. turning diameter	mm	1250	1600	2000	2300	2600
Max. height of workpiece	mm	1000	1200	1250	1250	1600
Max. weight of workpiece	tons	3.2	5	5	8	10
Worktable diameter	mm	1000	1400	1800	2000	2300
Worktable speed series	step	4 gears, stepless	4 gears, stepless	16 gears, stepless	16 gears, stepless	16 gears, stepless
Worktable speed range	r/min	6.3-200	5-160	4-125	3.2-100	2.5-80
Main motor power	KW	22	30	30	30	37
Beam travel	mm	650	850	1000	1000	1250

NO.	ITEM	SPECIFICATION	QTY'
1	Chuck jaw		4 sets
2	Chuck claw screws		16 sets
3	Tool holder		1 sets
4	Sizing Block		7pcs
5	Foot screw	M24*500	7 pcs
6	Hex nuts	M24	7 pcs
7	Washer	24	7 pcs
8	Chuck wrench	square 24	1 set
9	Allen wrench	36	1 pc
10	Quadrilateral sleeve elbow wrench	22	1 pc
